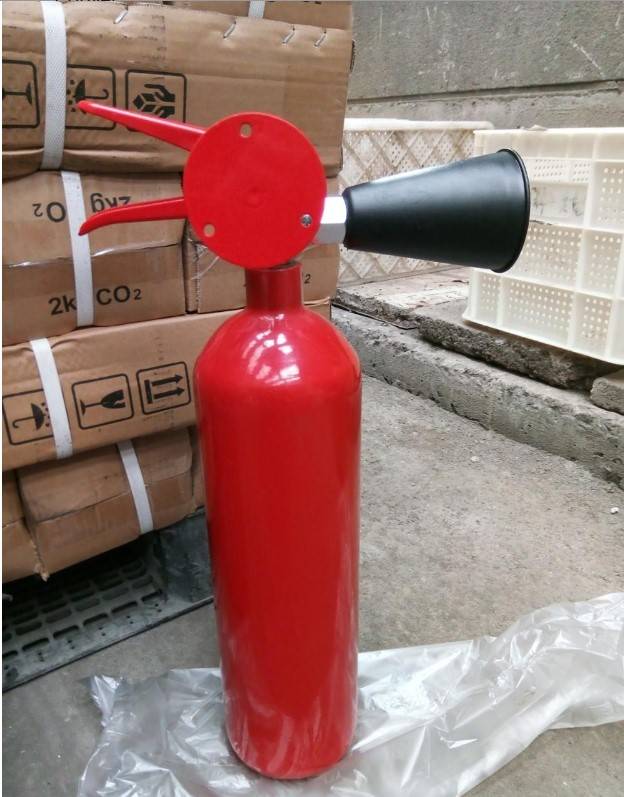

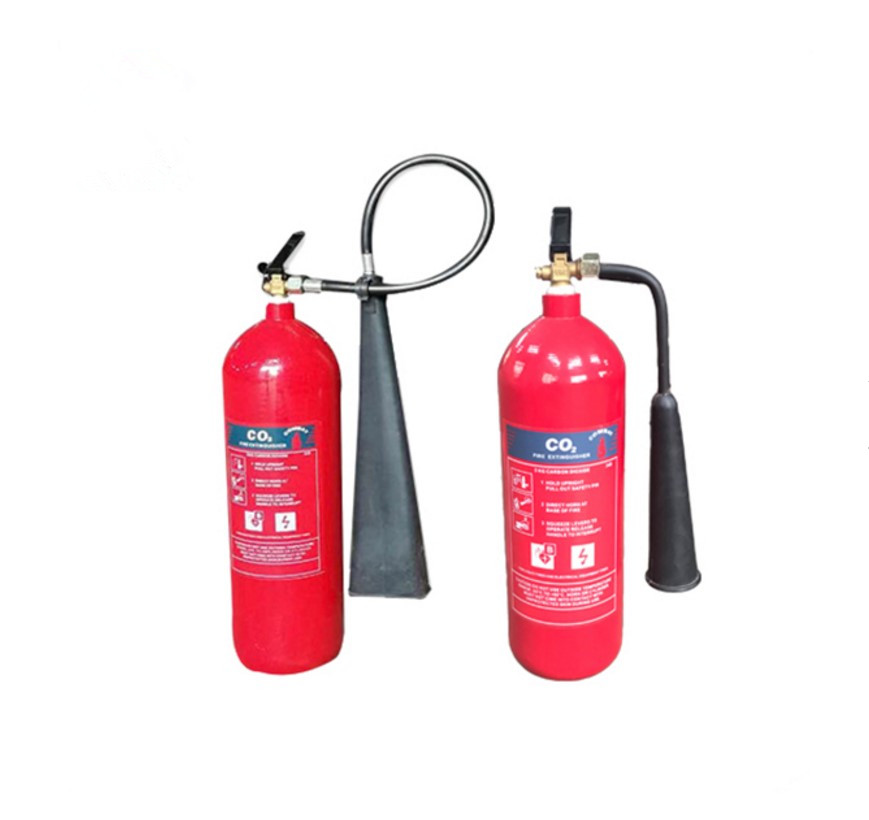

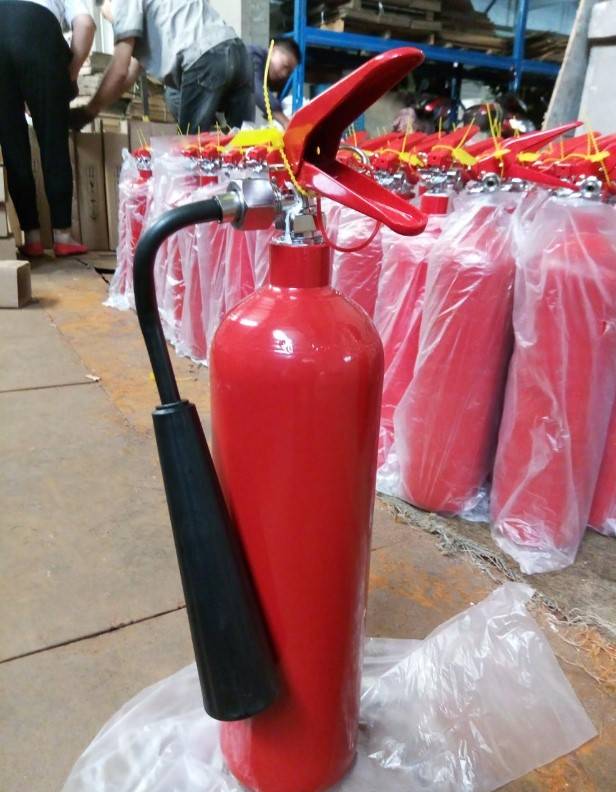

CHINA SUPPLIER 6KG CO2 FIRE EXTINGUISHER PRICE
Short Description:
- Brand Name: DSW
- Temperature Range: -40℃~+60℃
- Material: Carbon Steel
- Type: Portabel
- Agent: CO2 Gas
- Packing: Cartons and Seaworthy
CO2 Fire Extinguisher Technical Specifications | ||||||||
Capacity | 2KG | 3KG | 4.5KG | 5KG | 6KG | 7KG | 9KG | 10KG |
Cylinder Dia.(MM) | 108/114 | 114 | 152 | 152 | 152 | 152 | 159 | 159 |
Cylinder Height(MM) | 440/420 | 600 | 520 | 580 | 650 | 750 | 880 | 970 |
Volume(L) | 3 | 4.5 | 6.8 | 7.5 | 9 | 10.5 | 13.5 | 15 |
Cylinder Weight(KG) | 5.8 | 7.5 | 10.5 | 11.8 | 13.8 | 14.5 | 18.5 | 20 |
Total Weight(KG) | 8.5 | 11.5 | 16.5 | 18.5 | 21.5 | 25 | 28 | 30 |
Material | CK45/Carbon Steel | |||||||
Working Pressure | 170Bar | |||||||
Test Pressure | 250Bar | |||||||
Temperature Range | -40℃~+60℃ | |||||||
Fire Rating | 21B | 34B | 55B | 70B | 89B | 113B | 186B | 233B |
Theory
Carbon dioxide fire extinguisher is the most common fire extinguisher, which mainly relies on smothering and partial cooling.
Components and specifications
It consists of cylinder, bottle valve and injection system.The specifications are 2kg, 3kg, 4.5kg,5kg,6kg,7kg,9kg and 10kg.
Application situation
Carbon dioxide fire extinguishers are suitable for starting fires of various flammable liquids and combustible gases.And electrical equipment and precision electronic equipment, expensive equipment fire.
Fire Extinguisher Test
Fire extinguisher are dangerous goods under IMO 1044 class 2.2 by international sea bureau so all the shipment must shipped as DG cargo.
a. All cartons must stick IMO green label
b. All container must pull green net
c. Danger shipping mark “1044″
