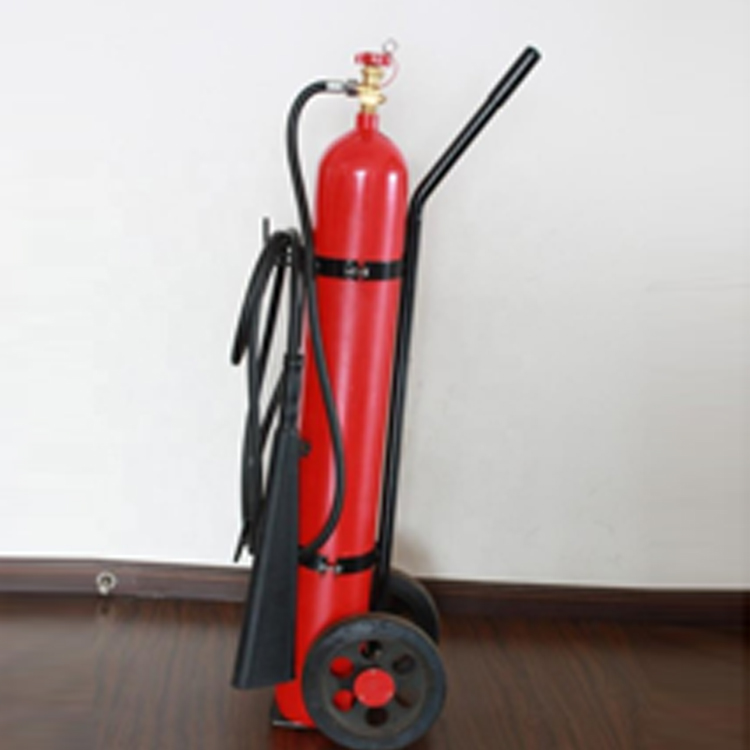

TROLLEY TYPE CHARGED WITH CARBON DIOXIDE GAS 9KG CO2 FIRE EXTINGUISHER

This form does not exist
分类:

CO2 Fire Extinguisher Technical Specifications
Capacity 2KG 3KG 4.5KG 5KG 6KG 7KG 9KG 10KG
Cylinder Dia.(MM) 108/114 114 152 152 152 152 159 159
Cylinder Height(MM) 440/420 600 520 580 650 750 880 970
Volume(L) 3 4.5 6.8 7.5 9 10.5 13.5 15
Cylinder Weight(KG) 5.8 7.5 10.5 11.8 13.8 14.5 18.5 20
Total Weight(KG) 8.5 11.5 16.5 18.5 21.5 25 28 30
Material CK45/Carbon Steel
Working Pressure 170Bar
Test Pressure 250Bar
Temperature Range -40℃~+60℃
Fire Rating 21B 34B 55B 70B 89B 113B 186B 233B

Theory

Carbon dioxide fire extinguisher is the most common fire extinguisher, which mainly relies on smothering and partial cooling.

Components and specifications

It consists of cylinder, bottle valve and injection system.The specifications are 2kg, 3kg, 4.5kg,5kg,6kg,7kg,9kg and 10kg.

Application situation

Carbon dioxide fire extinguishers are suitable for starting fires of various flammable liquids and combustible gases.And electrical equipment and precision electronic equipment, expensive equipment fire.

Fire Extinguisher Test

Fire extinguisher are dangerous goods under IMO 1044 class 2.2 by international sea bureau so all the shipment must shipped as DG cargo.
a. All cartons must stick IMO green label
b. All container must pull green net
c. Danger shipping mark “1044″





""
