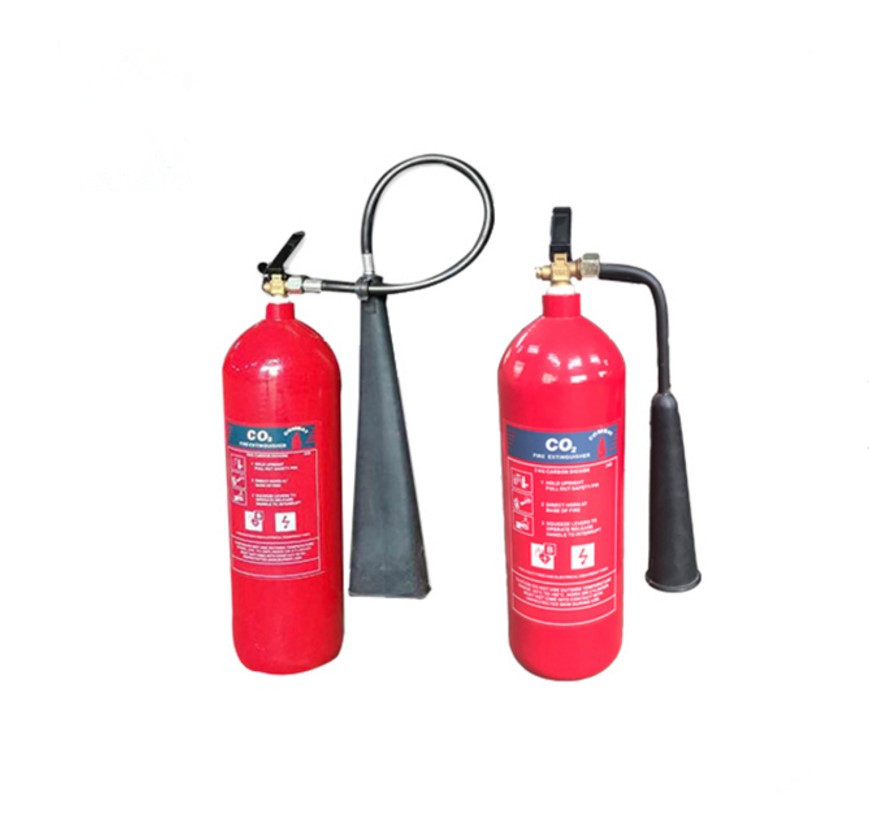

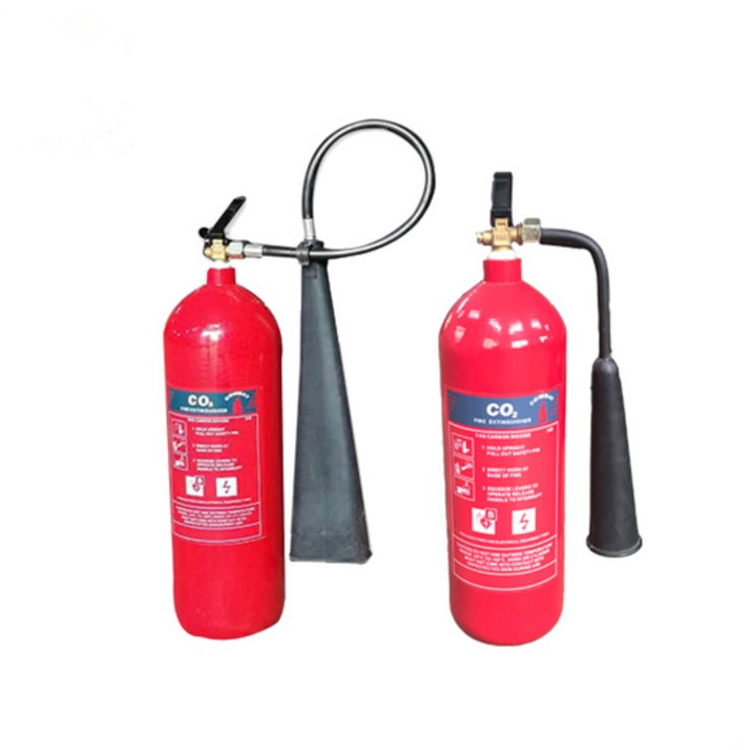

PORTABLE MT2 2KG CO2 CARBON DIOXIDE FIRE EXTINGUISHER
Short Description:
- Brand Name: DSW
- Temperature Range: -10℃~+50℃
- Material: Carbon Steel
- Type: Portabel
- Agent: CO2 Gas
- Packing: Cartons and Seaworthy
| CO2 Fire Extinguisher Technical Specifications | ||||||||
| Capacity | 2KG | 3KG | 4.5KG | 5KG | 6KG | 7KG | 9KG | 10KG |
| Cylinder Dia.(MM) | 108/114 | 114 | 152 | 152 | 152 | 152 | 159 | 159 |
| Cylinder Height(MM) | 440/420 | 600 | 520 | 580 | 650 | 750 | 880 | 970 |
| Volume(L) | 3 | 4.5 | 6.8 | 7.5 | 9 | 10.5 | 13.5 | 15 |
| Cylinder Weight(KG) | 5.8 | 7.5 | 10.5 | 11.8 | 13.8 | 14.5 | 18.5 | 20 |
| Total Weight(KG) | 8.5 | 11.5 | 16.5 | 18.5 | 21.5 | 25 | 28 | 30 |
| Material | CK45/Carbon Steel | |||||||
| Working Pressure | 170Bar | |||||||
| Test Pressure | 250Bar | |||||||
| Temperature Range | -40℃~+60℃ | |||||||
| Fire Rating | 21B | 34B | 55B | 70B | 89B | 113B | 186B | 233B |
Theory
Carbon dioxide fire extinguisher is the most common fire extinguisher, which mainly relies on smothering and partial cooling.
Components and specifications
It consists of cylinder, bottle valve and injection system.The specifications are 2kg, 3kg, 5kg and 7kg.
Application situation
Carbon dioxide fire extinguishers are suitable for starting fires of various flammable liquids and combustible gases.And electrical equipment and precision electronic equipment, expensive equipment fire.
Fire Extinguisher Test
""
