SAFETY FIRE EQUIPMENT FIRE DEPARTMENT CONNECTION

Short Description:

  • Model Number: HV028/028A
  • Standard: BSP/NPT
  • Outlet: 4″ NPT female thread
  • Material: Cast Iron
  • Media: Water
  • Type: Coupling/hose connection
  • Port Size: DN100-DN65
  • Inlet: 2.5″ NST female thread
  • Power: Manual



This form does not exist
分类:

 Fire Department Connection

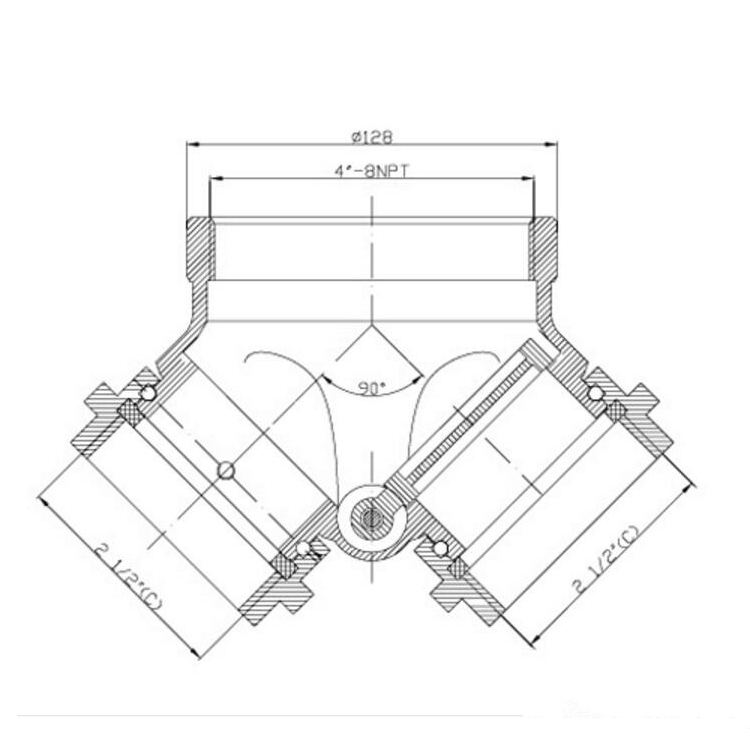

Model: HV031

SIZE:4″x2-1/2″x2-1/2″
Inlet:4″Female NPT

Outlet:2X2-1/2″Female NH thread

Material:Copper Alloy or brass

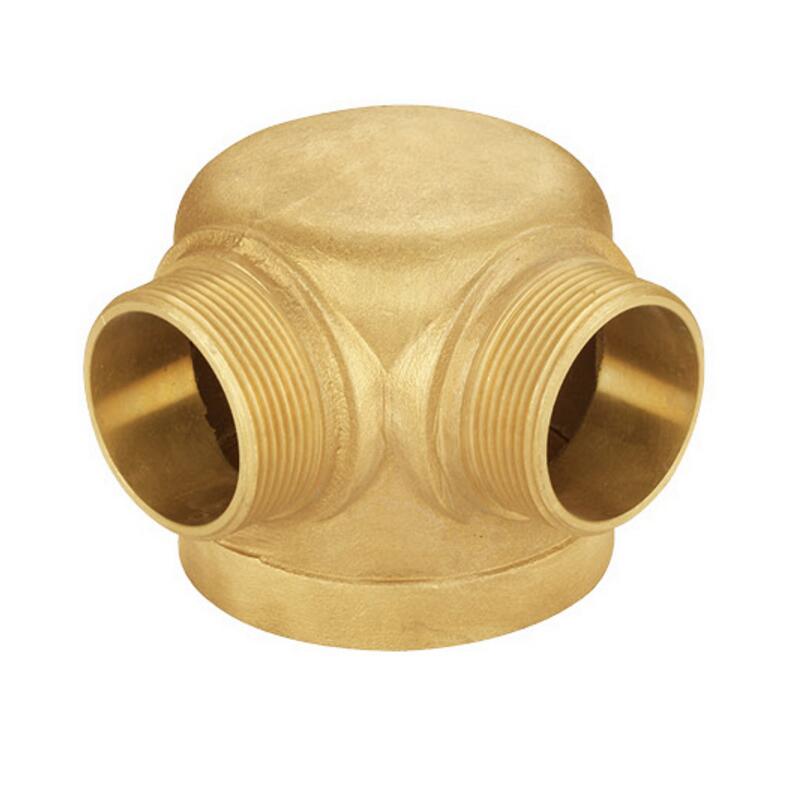

Fire department connection

The 21/2” swivels are pin lug design for ease of use and compatibility with local fire service districts.

Swivel gaskets are included. Breakable caps or plugs should be installed to protect swivels and prevent debris from being accidently introduced into the water way.

Indoor fire hydrant is the connecter in the water piping network, including one valve with single outlet, One Valve with double outlet and double valve with double outlet etc. It’s used to offer assistance to control the fire.

A hose is attached to the fire hydrant, then the valve is opened to provide a powerful flow of water, on the order of 350 kPa (50 lbf/in²) (this pressure varies according to region and depends on various factors including the size and location of the attached water main). This hose can be further attached to a fire engine, which can then use a powerful pump to boost the water pressure and possibly split it into multiple streams. The hose may be connected with a threaded connection, instantaneous “quick” connector or a Storz connector. Care should be taken not to open or close a fire hydrant too quickly, as this can create a water hammer which can damage nearby pipes and equipment. The water inside a charged hoseline causes it to be very heavy and high water pressure causes it to be stiff and unable to make a tight turn while pressurized.

""
