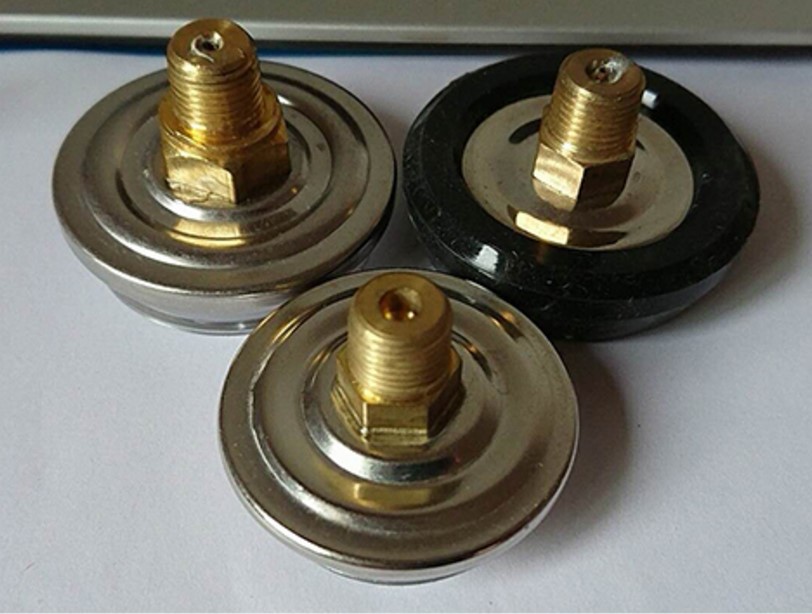

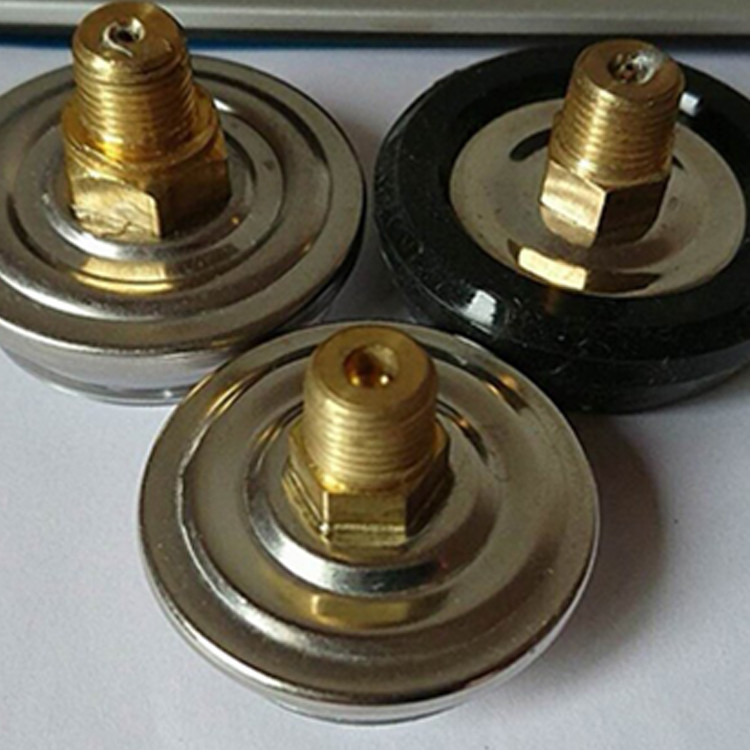

PRESSURE FIRE EXTINGUISHER GAUGE FOR FIRE EXTINGUISHER
Short Description:
- Type: Gauge
- Material: Brass/plastic

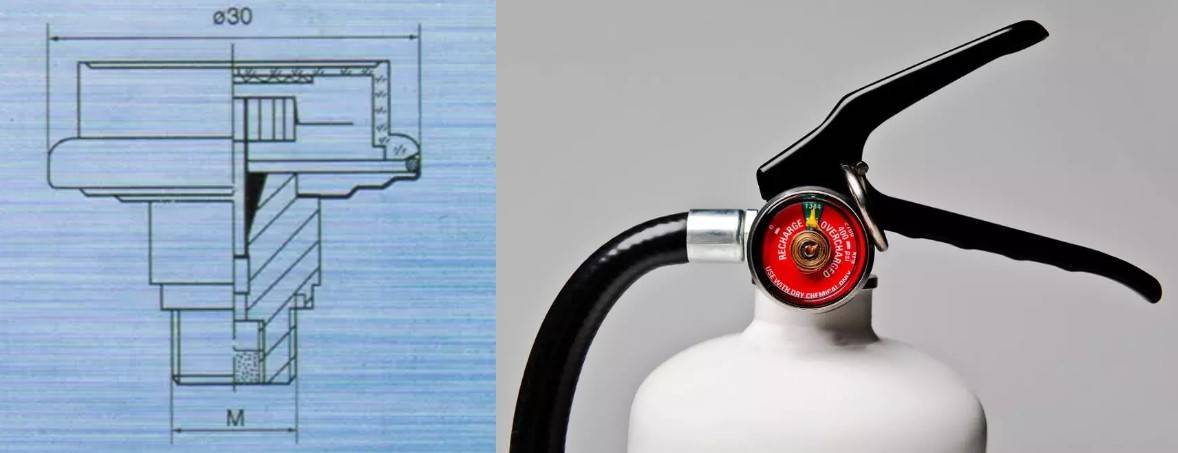

- Diameter: 30/37mm
- Capacity: 1KG-12KG, 25KG, 35KG, 50KG
- Wall thickness: 1.2mm-1.5mm
| Dial | 1” (25mm), 1.25” (32mm) or 1.5” (40mm) white aluminum with black markings |
| Case | 304 SS |
| Lens | Plexiglass or Pocarbonately |
| Spiral Tube | 60 to 2000 PSI:phosphor bronze3000 PSI: Beryllium copper or Stainless steel4000 PSI and above: 316L SS |
| Connection | 1/8” NPT standard, back |
| Pointer | 3000 PSI and below: Brass4000 PSI and above: 304 SS |
| Over-Pressure Limit | 10% of full scale value |
| Working Pressure | 10% of full scale value |
| Ambient | -40°F to 150°F (-40°C to 65°C) |
| Accuracy | ±3-2-3% ANSI/ASME Grade B |
| Enclosure Rating | IP65 |
• Reliable, small diameter, low profile gauge
• 1″ (25mm) to 1.5″ (40mm) sizes
• 1/8″ NPT socket
• Direct drive (no linkages or hairsprings) eliminating premature failure from the gear and movement
• Safety over-pressure port on the lens
• “Use No Oil” for use in oxygen service
• UL Listed for 1.25” 3000psi and 4000psi and 1.5” gauges,UL number:SA32781
Applications:
• Commonly used on portable pneumatic equipment such as compressors, hand-held sprayers, pressurized recreational guns, oxygen tanks and regulators, pumps and fire extinguishers
""
